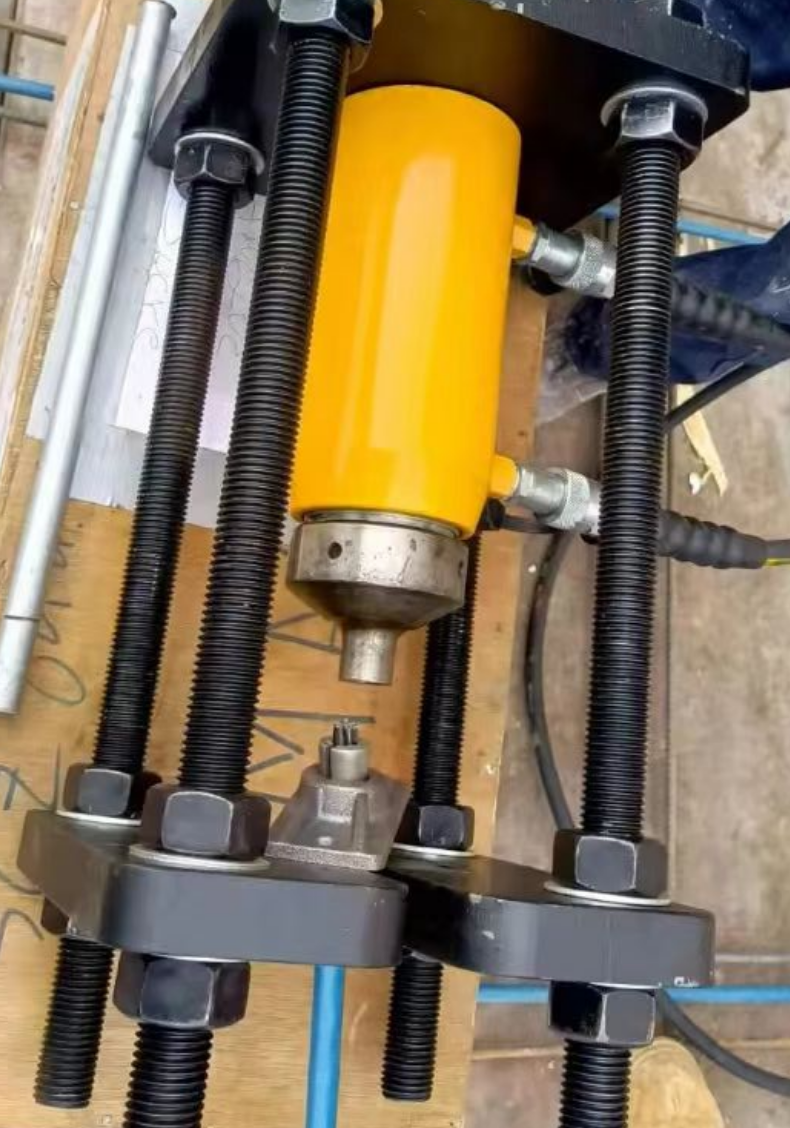

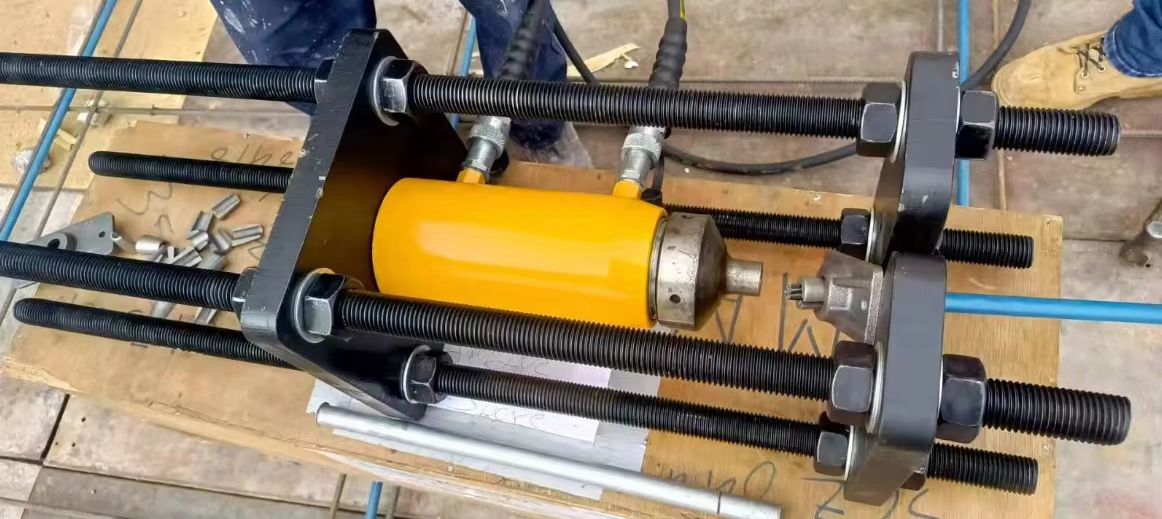

Single Hole Flat Anchorage Assembly Machine

The Single Hole Flat Anchorage Assembly Machine is designed for the assembly and fixing of single-hole flat anchorage components used in prestressing applications.

The equipment is used to position the prestressing steel strand together with the flat anchor barrel and wedges, then apply controlled hydraulic pressure to securely assemble the anchorage components. The completed assembly provides a reliable fixed-end connection for prestressing steel strand systems.

Designed for efficient and repeatable operation, the machine helps improve assembly consistency compared with manual installation. It is suitable for the production and preparation of single-hole flat anchorage assemblies used in precast concrete, prestressed concrete components and related tensioning applications.

Working Principle

The prestressing strand is positioned inside the anchorage assembly together with the corresponding anchor barrel and wedges. The hydraulic system applies controlled pressure to assemble and secure the components in the required position.

Proper alignment and controlled pressing help ensure consistent assembly quality and reliable strand anchoring performance.

Key Features

* Designed for single-hole flat anchorage assemblies

* Suitable for prestressing steel strand applications

* Hydraulic pressing and assembly system

* Controlled and repeatable assembly process

* Improved positioning accuracy of anchorage components

* Suitable for different strand and anchorage specifications

* Compact structure and convenient operation

* Can be supplied according to specific anchorage requirements

Applications

The Single Hole Flat Anchorage Assembly Machine can be used for the preparation and assembly of anchorage systems applied in:

* Prestressed concrete components

* Precast concrete production

* Prestressed poles and piles

* Railway sleepers

* Concrete slabs and structural elements

* Other single-strand prestressing applications

Technical Parameters

The machine configuration can be designed according to the required anchorage type, steel strand diameter and production requirements.

For different anchorage structures and steel strand sizes, the equipment can be customized according to the required assembly process.
